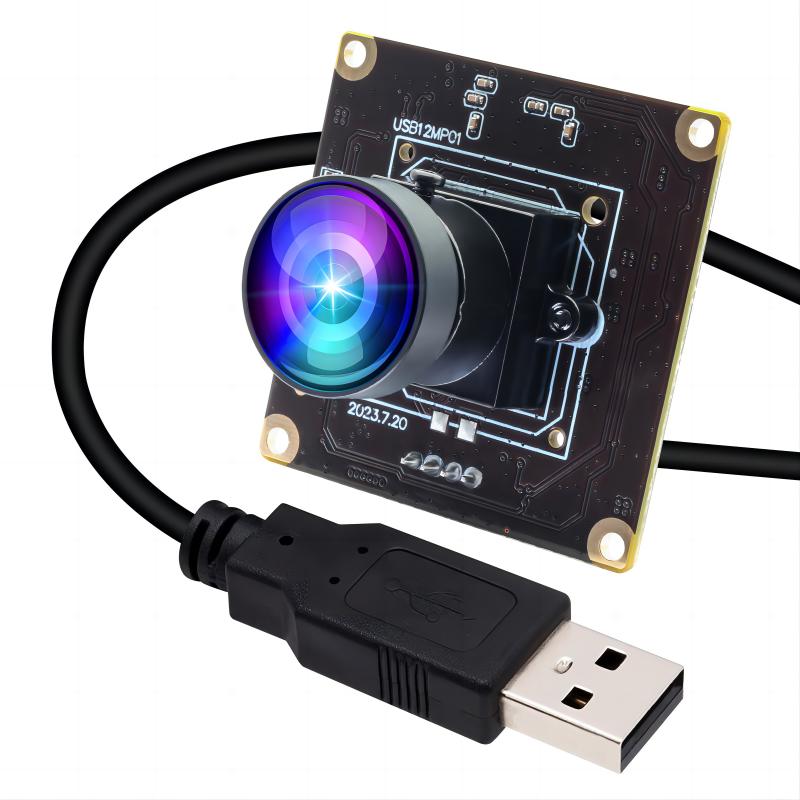

ELP 120fps High Speed USB Camera Module 12MP Webcam 3040P Mini Camere with Fisheye Lens for Home Security Robot Kiosk Lightburn

ELP 120fps High Speed USB Camera Module 12MP Webcam 3040P Mini Camere with Fisheye Lens for Home Security Robot Kiosk Lightburn

$95.70
  • Description
  • Reviews
  • Shipping & Returns

ELP 120fps High Speed USB Camera Module 12MP Webcam 3040P Mini Camere with Fisheye Lens for Home Security Robot Kiosk Lightburn

Key Specifications:



Model NO.:

ELP-USB12MP01-L170 (fisheye lens, HFOV 164 degree)

Image Sensor

SONYIMX577(1/2.3”)

Max.Resolution

3840(H)*3040 (V)

Default Resolution

3840(H)*2880(V)

Compression Format

MJPEG/ YUY2(YUYV)

Resolution &FrameRate

3840X3040MJPEG@20fps YUY2@1fps

3840X2880MJPEG@20fps YUY2@1fps

3840X2160MJPEG@30fps YUY2@1fps

2592X1944MJPEG@30fps YUY2@1fps

2048X1536MJPEG@30fps YUY2@3fps

1600X1200MJPEG@30fps YUY2@5fps

1920X1080MJPEG@120fps YUY2@5fps1280X960MJPEG@120fps YUY2@5fps

1280X720MJPEG@120fps YUY2@5fps

1024X768MJPEG@120fps YUY2@5fps

960X720MJPEG@120fps YUY2@5fps

800X600MJPEG@120fps YUY2@20fps640X480MJPEG@120fps YUY2@30fps320X240MJPEG@120fps YUY2@30fps

Minimum illumination

0.1lux

ConnectingPort type

USB2.0High Speed

AutoFocus

Support optional

Lens Parameter

1.95mm Fisheye Lens,HFOV about 164degree(1.56mmoptional)

Power Supply& Connector

USBBUSPOWER4P-2.0mm socket

Power Voltage

DC5V

Power Current

240mA

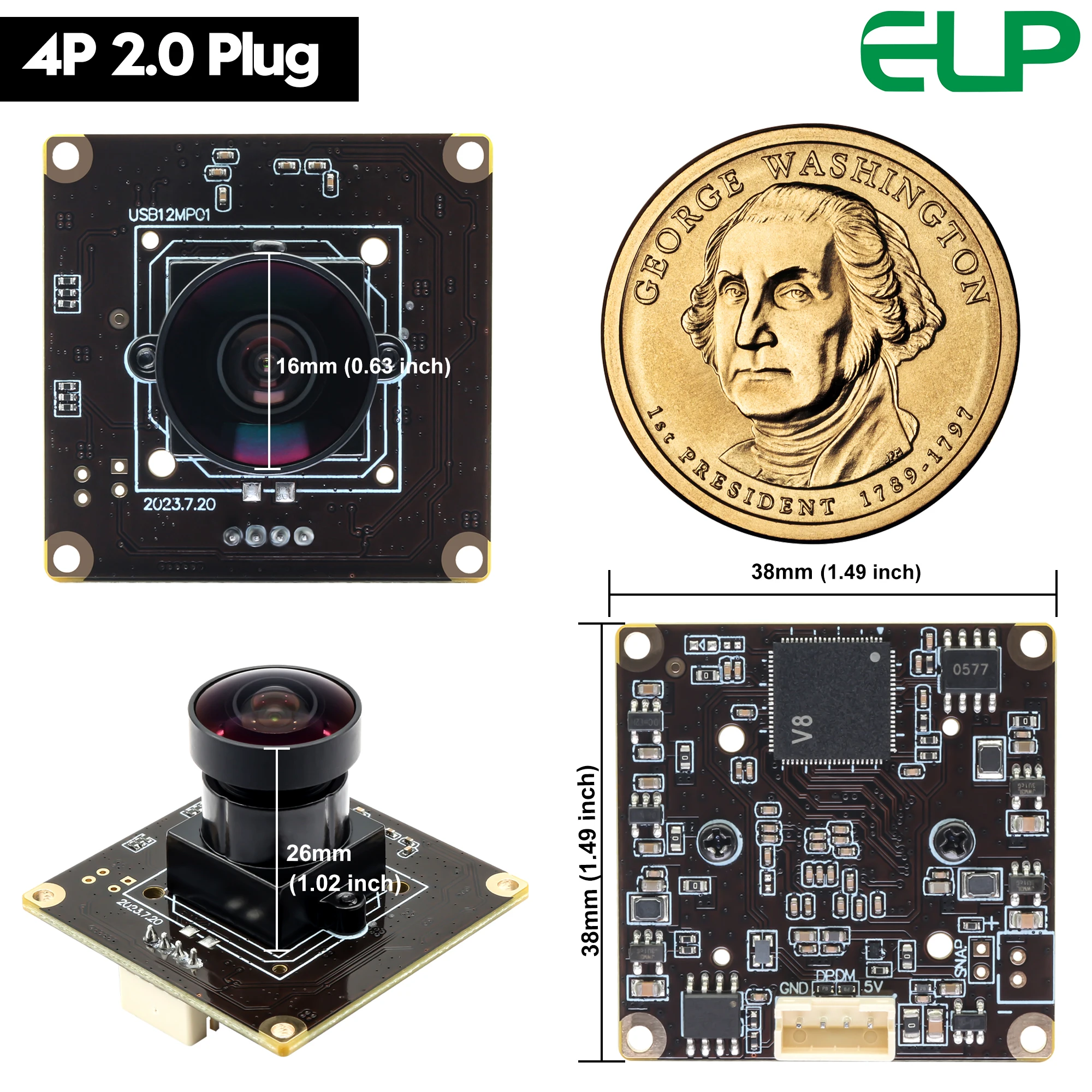

Board Size

38mm ×38mm

USBCable

1M(2M/3M/5M optional)

Operating System Support

Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.Linux withUVCabovelinux-2.6.26

MAC-OS X10.4.8 orlater

Android 4.0 or abovewithUVC




High Frame Rate 12MP 120fps Day Night Vision USB Camera Module:


This High Resolution 12MP USB Camera Module is based on big size 1/2.3” Sony IMX577 image sensor. It can work in high frame rate 120fps in 1080P, without lag. USB 2.0 UVC compliant camera. This is a mini webcam module, Max resolution 11.6 Mega pixel 3840*3040 output. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera, shoot the images or record videos with super Image reality, real color reproduction. Its ultra 3840*3040 resolution can be used in a wide range of applications where high resolution images and high frame rate videos capabilities are required.



High Speed 120fps USB Camera Module 0.1Lux Illumination Work Well in Low Light Environment



Wide Angle Fisheye Lens



Mini size for PC camera interface Free driver Plug and Play

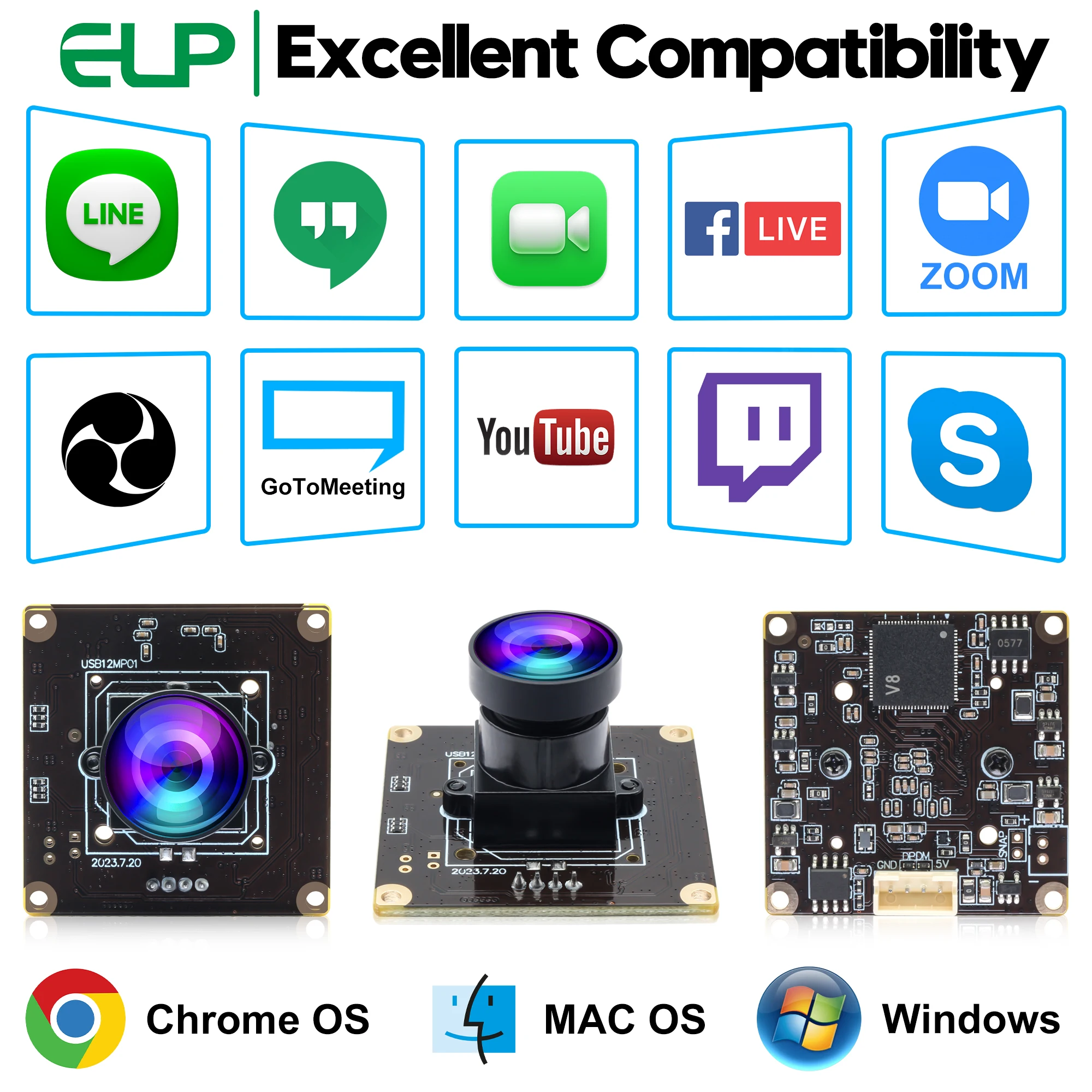

Multiple Compatibility


Mini Size Embedded 12MP 120fps USB Camera Module

Application:

Well used for industrial camera, sports motion capture, golf game recording video conferencing, live streaming, security system, medical device, industrial inspection, scientific research and development , education and training, high resolution document scan, high-speed photographic apparatus, photo scanner... and so on.
