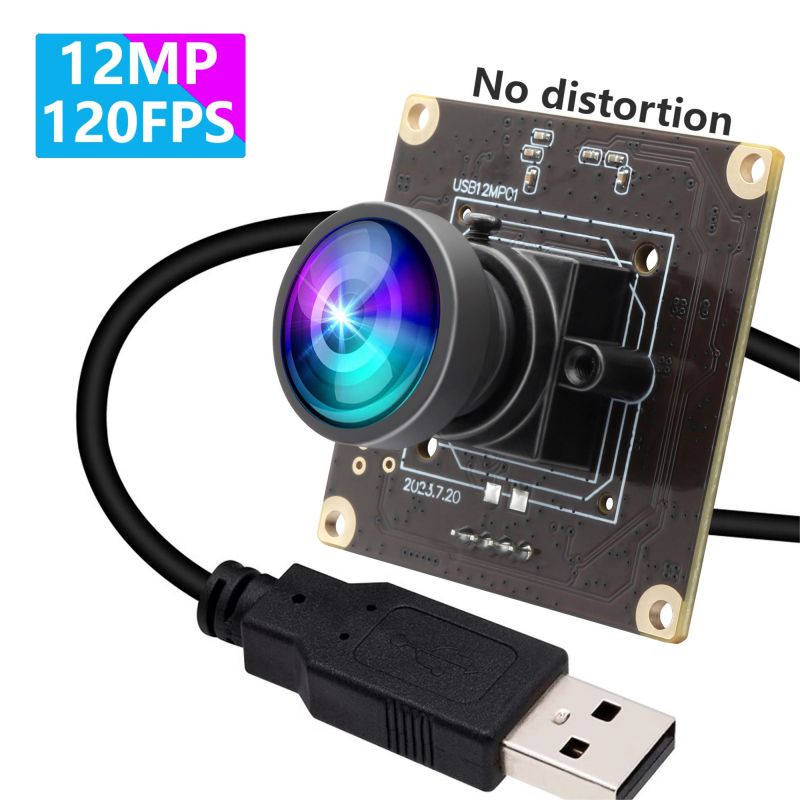

ELP 12MP USB Camera Module 120fps High Speed Webcam 3840*3040

Mini Camere with No Distortion Lens for High Speed Motion Capture




ELP-USB12MP01-H100 (HFOV about 102degree, other lens optional)



High Frame Rate 12MP 120fps Day Night Vision USB Camera Module:

__________________________________________________________________________________________________________________________


This High Resolution 12MP USB Camera Module is based on big size 1/2.3” Sony IMX577 image sensor.
It can work in high frame rate 120fps in 1080P, without lag. USB 2.0 UVC compliant camera. This is a
mini webcam module, Max resolution 11.6 Mega pixel 3840*3040 output. No extra drivers needed, the
native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera, shoot the
images or record videos with super Image reality, real color reproduction. Its ultra 3840*3040
resolution can be used in a wide range of applications where high resolution images and high frame rate
videos capabilities are required.


Other lens optional:

ELP-USB12MP01-H110 (HFOV about 118degree)




Key Specifications:

__________________________________________________________________________________________________________________________







Model NO.:

ELP-USB12MP01-H100(no distortion lens, HFOV 102 degree)

ELP-USB12MP01-H110(no distortion lens, HFOV 118 degree)

Image Sensor

SONY IMX577(1/2.3”)

Max.Resolution

3840(H)*3040 (V)

Sensor Size/Image Size

10.7mmX8.5mm/5.95mmX4.71mm

Default Resolution

3840(H)*2880(V)

CompressionFormat

MJPEG/ YUY2(YUYV)

Resolution &FrameRate

3840X3040MJPEG@20fps YUY2@1fps

3840X2880MJPEG@20fps YUY2@1fps

3840X2160MJPEG@30fpsYUY2@1fps

2592X1944MJPEG@30fps YUY2@1fps

2048X1536MJPEG@30fps YUY2@3fps

1600X1200MJPEG@30fps YUY2@5fps

1920X1080MJPEG@120fps YUY2@5fps

1280X960MJPEG@120fps YUY2@5fps

1280X720MJPEG@120fps YUY2@5fps

1024X768MJPEG@120fps YUY2@5fps

960X720MJPEG@120fps YUY2@5fps

800X600MJPEG@120fps YUY2@20fps

640X480MJPEG@120fps YUY2@30fps

320X240MJPEG@120fps YUY2@30fps

CenterDefinition

1000LW/PH(Center)

S/NRatio

24dB

Sensitivity

0.65V/lux-sec@550nm

Minimumillumination

0.1lux

Shutter Type

Electronicrolling shutter /Frame exposure

ConnectingPort type

USB2.0High Speed

AEC/ AWB/ AGC

Support

AutoFocus

Support optional

AdjustableParameters

Brightness, Contrast,Hue,Saturation, Sharpness, Gamma, WhiteBalance,Exposure

LensParameter

No distortionLens,HFOV about 88 degree(Many otherlensoptional)

Power Supply& Connector

USBBUSPOWER4P-2.0mm socket

Power Voltage

DC5V

Power Current

240mA

Board Size

38mm ×38mm

USBCable

1M(2M/3M/5M optional)

Operating System Support

Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.Linux withUVCabovelinux-2.6.26

MAC-OS X10.4.8 orlater

Android 4.0 or abovewithUVC


Features:

High Speed 120fps USB Camera Module                                         0.1Lux Illumination Work Well in Low Light

________________________________________________________________________________________________________






3840*3040 12MP Ultra HD                                                       ④ Wide Angle Low distortion lens

________________________________________________________________________________________________________




Multiple Compatibility

________________________________________________________________________________________________________





USB2.0 Free driver Plug and Play

________________________________________________________________________________________________________




⑦Mini Size Embedded 12MP 120fps USB Camera Module



Application:

________________________________________________________________________________________________________



Well used for industrial camera, sports motion capture, golf game recording video conferencing,

live streaming, security system, medical device, industrial inspection, scientific research and development ,

education and training, high resolution document scan, high-speed photographic apparatus, photo scanner...

and so on.
